Easy to use, point-and-shoot thermal imaging cameras

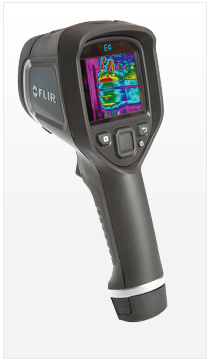

FLIR Ex-Series cameras are point-and-shoot thermal imaging cameras that give you access to a new dimension in inspection capability. A FLIR Ex-Series camera is an affordable replacement for a spot pyrometer. It provides a thermal image with temperature information on every pixel. The combined image storage of the new MSX®, thermal and visual formats make the cameras incomparably easy to use.



ease of use

Outstanding ease-of-use
The cameras are extremely easy to understand and operate, designed for entry-level users. The cameras are intuitive and come with a full manual.


auto kopie.png



Fully automatic
FLIR Ex-Series produce instant, point-and-shoot JPEG thermal imagery with all required temperature data included.


focus free

Focus free
The fixed focus-free lens makes using the FLIR Ex-Series a snap.


lightweight

Compact and lightweight
FLIR Ex-Series weighs only 575g, and is easy to store in a belt pouch.
visual camera

Visual camera
Visible light camera makes observing and inspecting faster and easier.


software

Reporting and analysis software included
FLIR Tools software is available for free download for all Ex-Series users.


accuracy kopie.png

Measure temperatures
Measures temperatures up to +250°C and detects temperature differences as small as 0.06°C (FLIR E6 / FLIR E8).


measurement modes

Measurement functions
Spotmeter, area with max./min., color alarm; blue below / red above set temperature.*
PIP

Picture-in-Picture (PiP)
With the PiP function it is easy to locate areas of interest.*


MSX

Multi Spectral Dynamic Imaging (MSX®)
The innovative MSX® feature produces an image more rich in every detail than ever before.


MSX storage

Multi Spectral Image storage
Combined image storage including MSX®, thermal, PiP and visual.



  * Features dependant on camera model, please check technical specifications for more details.

FLIR Ex-Series camera model comparison


FLIR E4 FLIR E5 FLIR E6 FLIR E8
Thermal image quality: 80x60 pixels Thermal image quality: 120x90 pixels Thermal image quality: 160x120 pixels Thermal image quality: 320x240 pixels
Thermal sensitivity: 0.15°C Thermal sensitivity: 0.10°C Thermal sensitivity: 0.06°C Thermal sensitivity: 0.06°C
IR image, visual image, MSX®, thumbnail gallery IR image, visual image, MSX®, thumbnail gallery IR image, visual image, MSX®, picture in picture, thumbnail gallery IR image, visual image, MSX®, picture in picture, thumbnail gallery
Center spot Center spot, area with max./min. Spotmeter, area with max./min., color alarm; blue below / red above set temperature Spotmeter, area with max./min., color alarm; blue below / red above set temperature

For More Details, please visit www.flir.com/in/

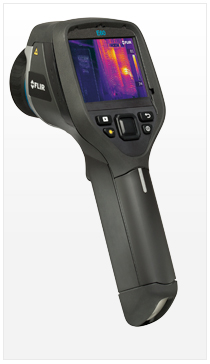

Lightweight design, heavyweight performers

The new user interface and new keypad make the new FLIR Exx-Series even more user-friendly than before. New features, such as MSX® and auto orientation, together with the
Wi-Fi and MeterLink connectivity, ensure that the FLIR Exx-Series is the best in its class.

The cameras are ideal for predictive maintenance and planned inspections of electrical and mechanical systems to ensure they operate at maximum efficiency and safety with minimal energy consumption.


320x240 kopie.png

Up to 320 x 240 pixels resolution
The FLIR Exx-Series infrared image resolution ranges from 160x120 pixels to 320x240 pixels depending on camera model. Every additional pixel means more valuable temperature information to isolate problem areas.


lightweight



Compact and lightweight
FLIR Exx-Series models weigh only 880g (battery included).


visual camera

High quality 3.1 Mpixel visual camera
Visible light camera makes observing and inspecting faster and easier.


image gallery

Thumbnail image gallery
An easy-to-access thumbnail image gallery helps you to quickly review and find your thermal images.


accuracy kopie.png

± 2% accuracy
High accuracy of ± 2% or ± 2 °C of reading.


lcd screen

Intuitive user interface
Intuitive user interface including keypad and 3.5" touch screen.


illuminator lights

Built-in LED light
The built-in LED lamp ensures quality visual images regardless of job site lighting levels.
battery kopie.png

Long life battery
With a 4 hour battery life, its easy-to-replace Lithium Ion batteries will keep up with your demanding schedule.


laser pointer

Laser Pointer
A conveniently located button activates the laser pointer that will help you associate the hot or cold spot in the thermal image with the real physical target in the field.


PIP

Picture-in-Picture (PiP)
With the PiP function it is easy to locate areas of interest.


annotations_textvoicesket kopie.png

Text and voice annotations*
Text comments can be made by using the touch screen. A headset can be connected to make voice annotations.


lenses

Interchangeable lenses
In order to adapt the FLIR Exx-Series to every situation both wide angle and tele-lenses are available.
MSX

Multi Spectral Dynamic Imaging (MSX®)
The innovative MSX® feature produces an image more rich in every detail than ever before.
autorotatiion
 Auto orientation
The measurement data on the image will auto­matically adjust to the vertical or horizontal position of the camera.
MSX storage  Multi Spectral Image storage
Combined image storage including MSX®, thermal, PiP and visual.

  * Features dependant on camera model, please check technical specifications for more details.



FLIR Exx-Series camera model comparison



FLIR E40 FLIR E50 FLIR E60
Thermal image quality: 160x120 pixels Thermal image quality: 240x180 pixels Thermal image quality: 320x240 pixels
Thermal sensitivity: <0.07°C Thermal sensitivity: <0.05°C Thermal sensitivity: <0.05°C
Temperature range: -20°C to +650°C Temperature range: -20°C to +650°C Temperature range: -20°C to +650°C
Spot meters, areas and difference temperature Spot meters, areas and difference temperature Spot meters, areas and difference temperature
MeterLink™ MeterLink™ MeterLink™
Bluetooth® / WiFi Bluetooth® / WiFi Bluetooth® / WiFi
2x digital zoom 2x, 4x digital zoom 2x, 4x digital zoom
MSX® MSX® MSX®
Multi spectral image storage Multi spectral image storage Multi spectral image storage
PiP IR area on visual image PiP Scalable IR area on visual image PiP Scalable IR area on visual image
Video out Video out Video out
Non-radiometric IR-video recording Non-radiometric IR-video recording Non-radiometric IR-video recording
Non-radiometric IR-video streaming Non-radiometric IR-video streaming Non-radiometric IR-video streaming
Radiometric IR-video streaming Radiometric IR-video streaming Radiometric IR-video streaming
